MikroTik CRS109-8G-1S-2HnD-IN Distributor and Supplier in Doha Qatar

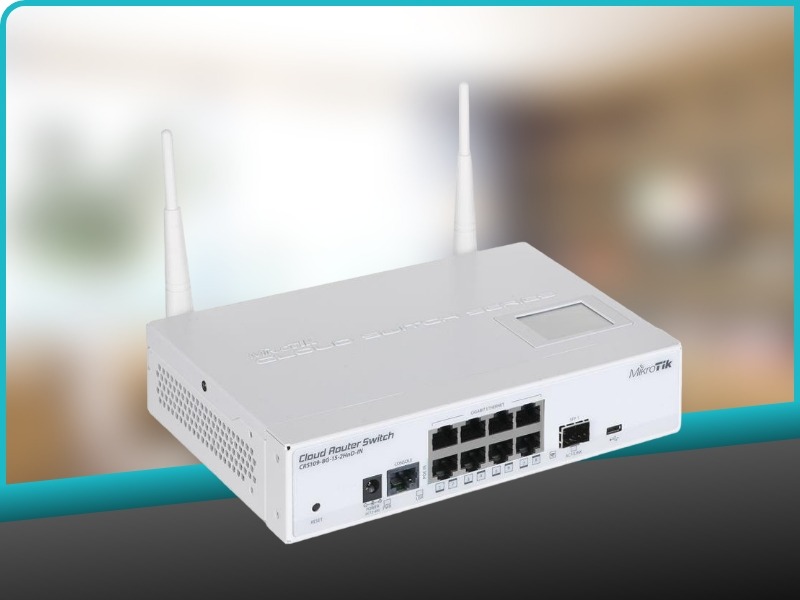

MikroTik CRS109-8G-1S-2HnD-IN

Cloud Router Switch 109-8G-1S-2HnD-IN is a new member of our CRS series that is "compact in size and low in cost." It has eight Gigabit Ethernet ports as well as high-power 2.4GHz wifi. The product is 802.3af/at compatible and supports 10-57V!

Our CRS series combines the best characteristics of a fully working router and a Layer 3 switch, and it is powered by RouterOS. All Switch configuration settings are available in a separate Switch menu, although ports can be withdrawn from the switch setup and used for routing reasons if desired.

Specifications

Details
Product code	CRS109-8G-1S-2HnD-IN
Architecture	MIPSBE
CPU	AR9344
CPU core count	1
CPU nominal frequency	600 MHz
Dimensions	200x145x45mm
License level	5
Operating System	RouterOS
Size of RAM	128 MB
Storage size	128 MB
Storage type	NAND
Tested ambient temperature	-40°C to 65°C
Suggested price

Powering

Details
PoE in	Passive PoE
802.3af support	yes
PoE in input Voltage	10-57 V
Number of DC inputs	2 (DC jack, PoE-IN)
DC jack input Voltage	10-57 V
Max power consumption	13 W

Wireless

Details
Antenna gain dBi for 2.4 GHz	4
Wireless 2.4 GHz standards	802.11b/g/n
Wi-Fi generation	4
Wireless 2.4 GHz Max data rate	300 Mbit/s
Wireless 2.4 GHz number of chains	2
Wireless 2.4 GHz chip model	AR9344

Ethernet

Details
10/100/1000 Ethernet ports	8

Fiber

Details
SFP DDMI	yes
SFP ports	1

Peripherals

Details
Serial port	RJ45
Number of USB ports	1
USB Power Reset	Yes
USB slot type	microUSB type AB
Max USB current (A)	1.5

Other

Details
PCB temperature monitor	Yes
Voltage Monitor	Yes

Wireless specifications

2.4 GHz	Transmit (dBm)	Receive Sensitivity
1MBit/s	29	-97
11MBit/s	28	-90
6MBit/s	30	-96
54MBit/s	25	-76
MCS0	30	-96
MCS7	23	-73
