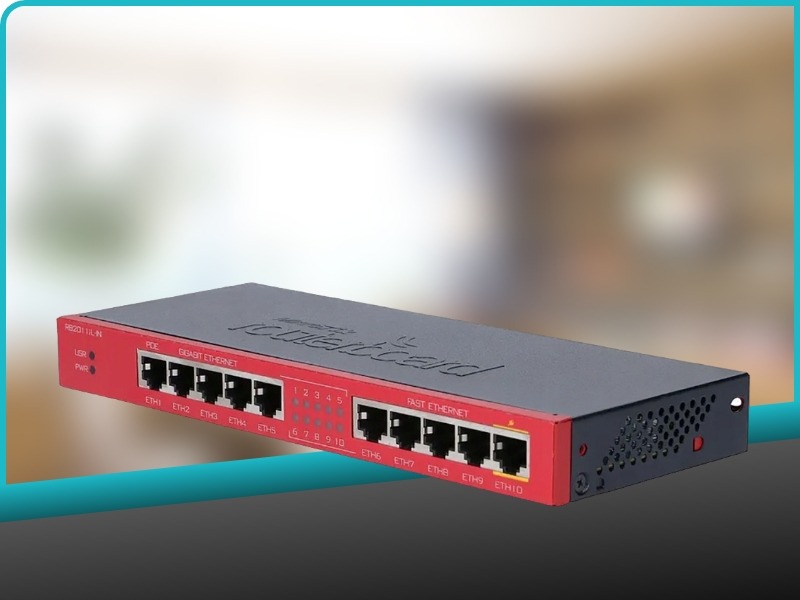

The most basic variant is the RB2011iL-IN, which has five Gigabit Ethernet ports, five Fast Ethernet ports, a power connection, and PoE capability.
It has a Level 4 RouterOS license and is powered by the new Athero’s next-generation 600MHz 74K MIPS network processor.
Port #10 has a PoE output function that can power additional PoE-equipped devices with the same voltage as the unit. The port's maximum load is 500mA.
The RouterBOARD 2011iL-IN includes a desktop enclosure and a power supply.
As an optional extra, a network closet wall mount kit is available for purchase.
| Details | |
|---|---|
| Product code | RB2011iL-IN |
| Architecture | MIPSBE |
| CPU | AR9344 |
| CPU core count | 1 |
| CPU nominal frequency | 600 MHz |
| Dimensions | 228x97x25mm |
| License level | 4 |
| Operating System | RouterOS |
| Size of RAM | 64 MB |
| Storage size | 128 MB |
| Storage type | NAND |
| Tested ambient temperature | -35C to +65C |
| Suggested price | |
| Details | |
|---|---|
| PoE in | Passive PoE |
| PoE in input Voltage | 8-30 V |
| PoE out | Passive PoE |
| PoE-out ports | Ether10 |
| Number of DC inputs | 2 (DC jack, PoE-IN) |
| DC jack input Voltage | 8-30 V |
| Max out per port output (input < 30 V) | 500 mA |
| Max total out (A) | 500 mA |
| Max power consumption | 18 W |
| Max power consumption without attachments | 6 W |
| Details | |
|---|---|
| 10/100 Ethernet ports | 5 |
| 10/100/1000 Ethernet ports | 5 |
