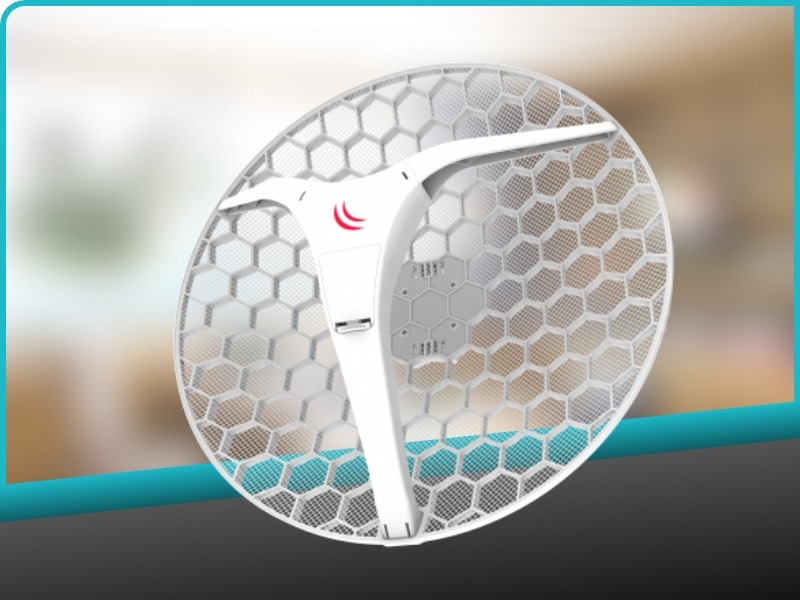

The LHG XL 5 ac is a low-cost Long Range 5GHz 802.11ac wireless device with an integrated dual-polarization 27 dBi grid antenna. It is ideal for point-to-point communications or as a CPE over longer distances, and it supports the Nv2 TDMA protocol.
To fully leverage the speeds provided by the 802.11ac protocol, the device contains one 10/100/1000 Mbit Ethernet connector.
| Details | |
|---|---|
| Product code | RBLHGG-5acD-XL |
| Architecture | ARM 32bit |
| CPU | IPQ-4018 |
| CPU core count | 4 |
| CPU nominal frequency | 716 MHz |
| Dimensions | Ø 550 x 245 mm; |
| License level | 3 |
| Operating System | RouterOS |
| Size of RAM | 256 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| Tested ambient temperature | -40°C to 70°C |
| Suggested price | $99.00 |
| Details | |
|---|---|
| PoE in | Passive PoE |
| PoE in input Voltage | 10-30 V |
| Number of DC inputs | 1 (PoE-IN) |
| Max power consumption | 8 W |
| Details | |
|---|---|
| AC speed | AC1200 |
| Antenna gain dBi for 5 GHz | 27 |
| Wireless 5 GHz standards | 802.11a/n/ac |
| Wi-Fi generation | 5 |
| Wireless 5 GHz Max data rate | 867 Mbit/s |
| Wireless 5 GHz number of chains | 2 |
| Wireless 5 GHz chip model | IPQ-4018 |
| Details | |
|---|---|
| 10/100/1000 Ethernet ports | 1 |
| 2.4 GHz | Transmit (dBm) | Receive Sensitivity |
|---|---|---|
| 6MBit/s | 25 | -96 |
| 54MBit/s | 21 | -80 |
| MCS0 | 25 | -96 |
| MCS7 | 20 | -75 |
| MCS9 | 18 | -70 |
